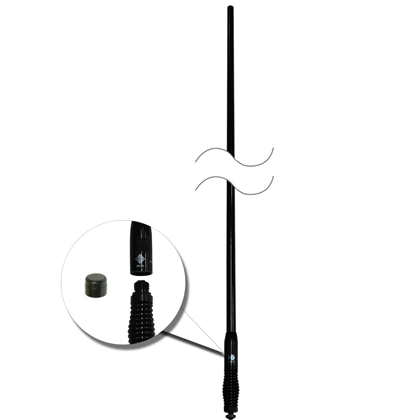

The outstanding performance of the CDQ7197 lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

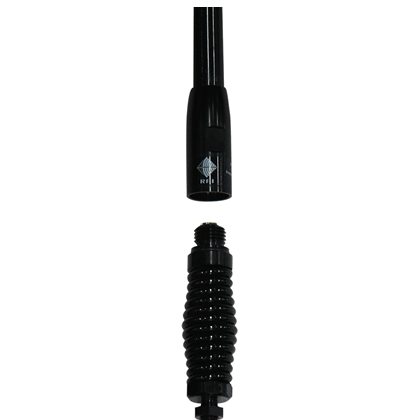

In addition, the CDQ7197 is designed with Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car wash’s, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.

-Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
-Ideal for all new 3G networks with true multi-band coverage
-High gain across 824-960 MHz suiting fringe and rural applications
-Min. 3 dBi gain at 2100 MHz to suit metropolitan applications today and future proofing for network expansions
-Q-Fit® removable whip system for ease of removal in low height environments such as multistory car parks, car wash’s or for security
